AIR-VAC electric

Vacuum excavator

ZERO EMISSION ELECTRIC POWER

Evolving from

ZERO EMISSION ELECTRIC POWER

Evolving from the industry-proven, diesel engine, AIR-VAC® track mini vacuum excavator, VAC-EX.com now offers a more sustainable option, still providing you with the performance you need, in the compact package you demand.

Work with confidence in confined spaces and congested areas.

Night work will now be possible with minimal noise disruption to the public and surrounding community.

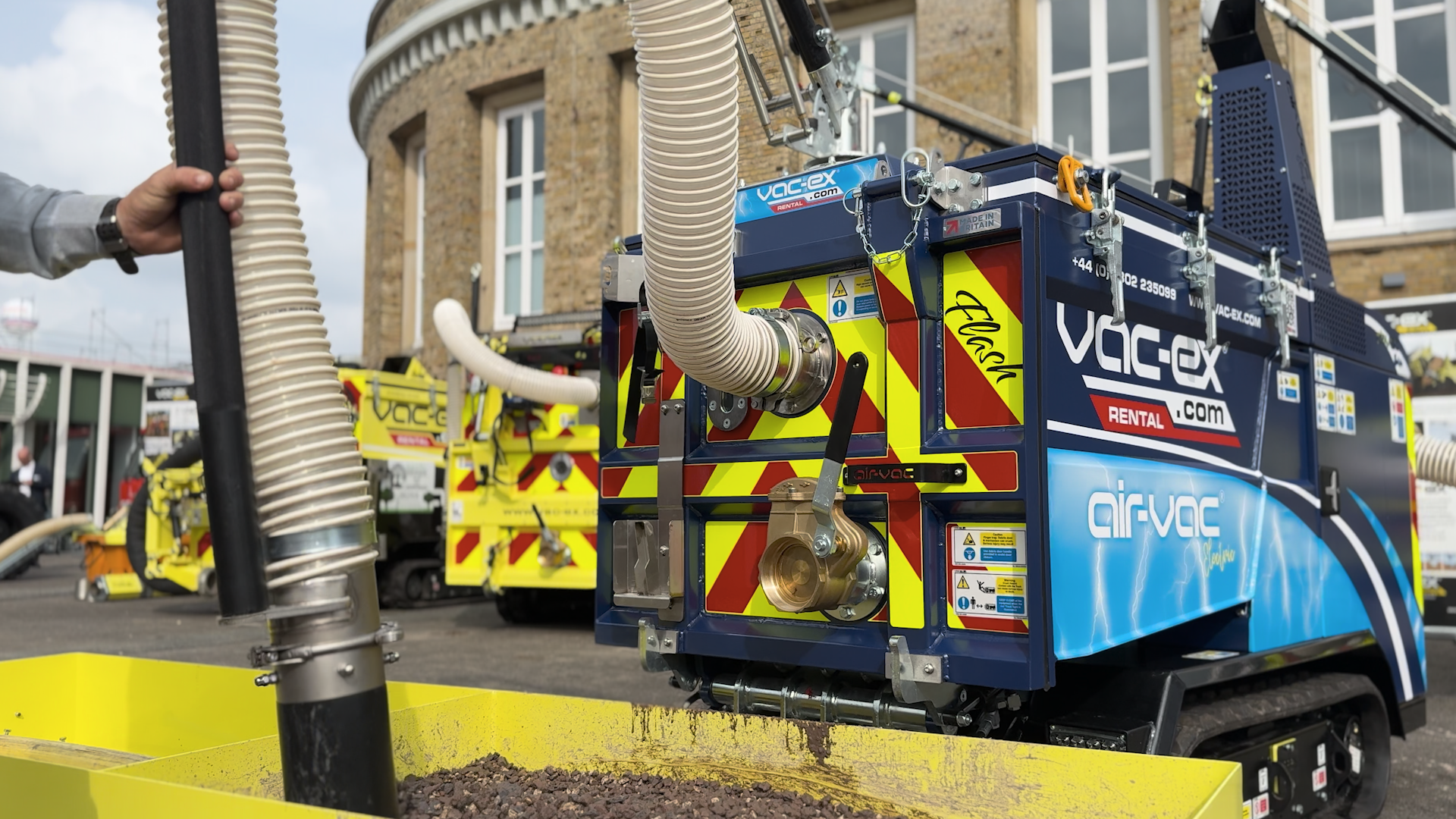

Narrow Trenching

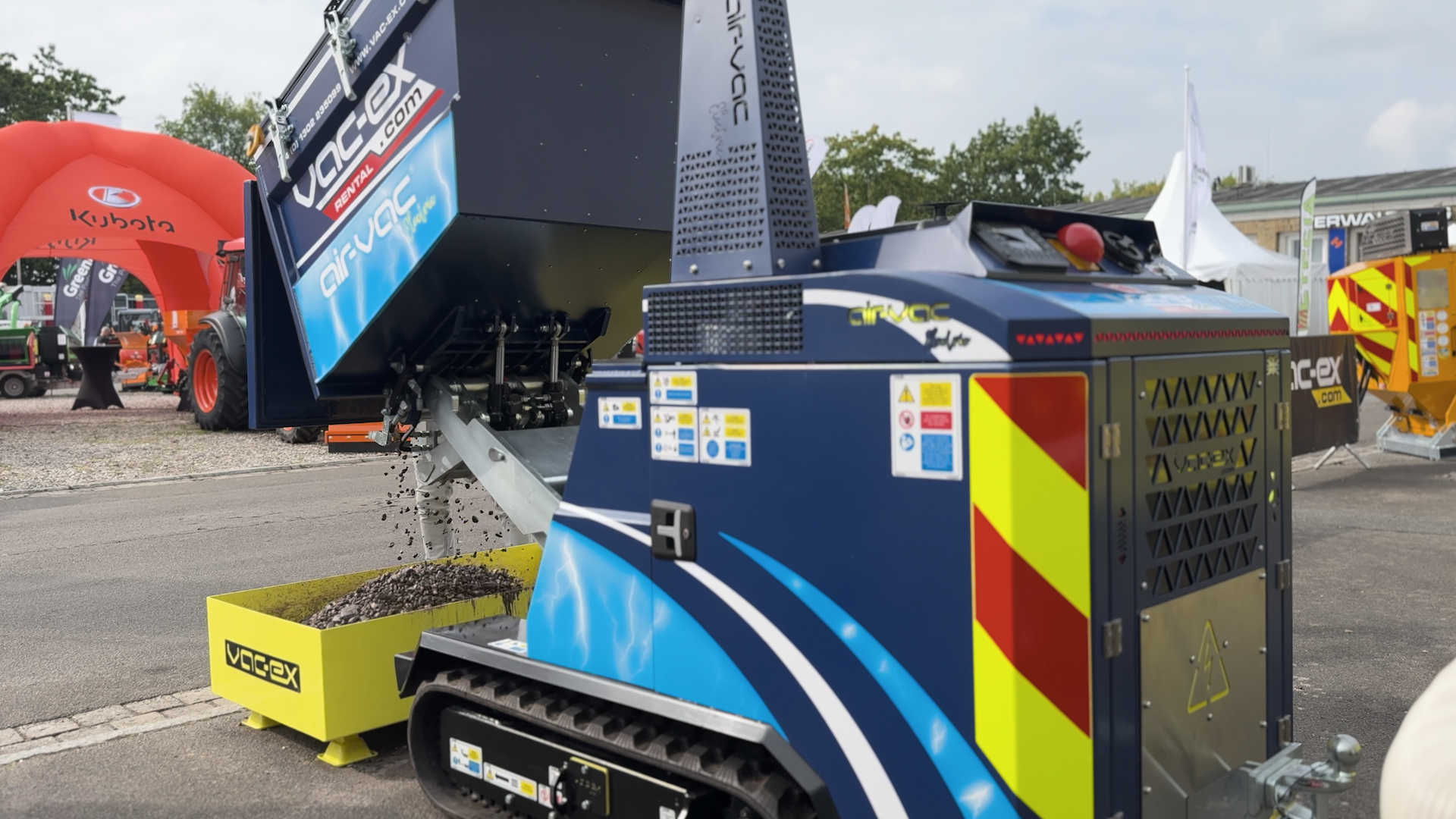

Tipping

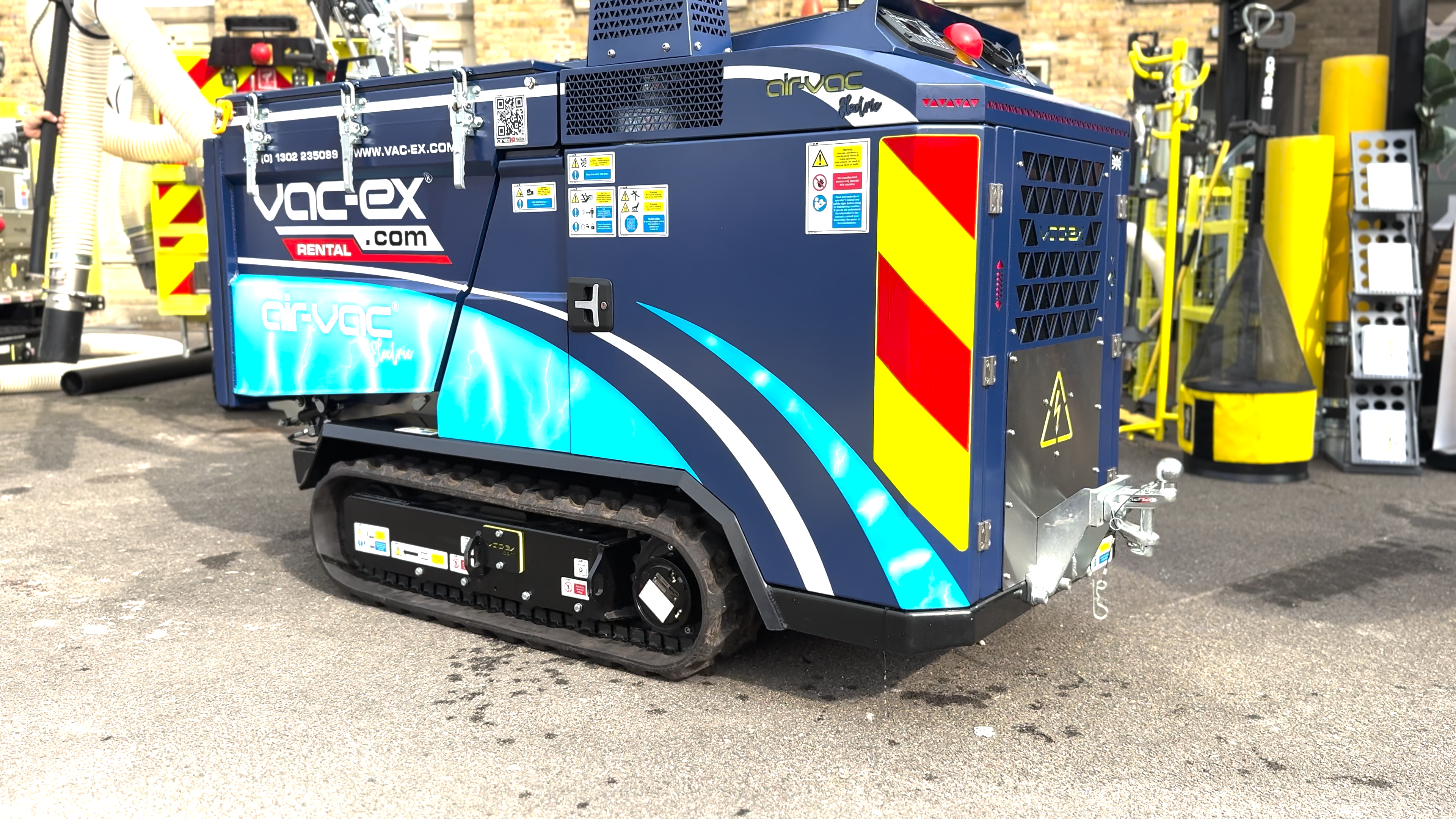

Movability

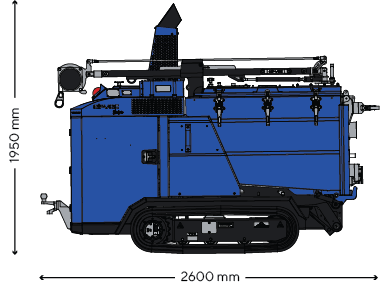

Technical Specifications


Length	2600 mm (102.36 in)
Width	1000 mm (39.37 in)
Height (top of exhaust)	1950 mm (76.77 in)
Height @min tipping	1800 mm (7.87 in)
Height @max tipping	2580 mm (101.57 in)
Weight	1905 kg (4200 lbs)
Debris skip capacity	0.2 m3 (44 gal)
Hose Inlet	125 mm (5 in)
Vacuum	Single Turbine
Battery type	Lithium-Ion
Battery voltage	118.4 volts
Battery capacity	42 kWh
Machine weight can vary depending on specification Under our policy of continuous improvement, we reserve the right to change specifications and design without prior notice. The illustrations do not necessarily show the standard version of the machine

OUR MACHINES ARE USED WITHIN

Introducing the AIR-VAC electric

The AIR-VAC now comes in a more sustainable option, without compromising the compact performance you expect.

Electric Power

Electric-powered operation ensures zero emissions and low noise levels, making it suitable for nighttime use and deployment in confined or high-traffic areas.

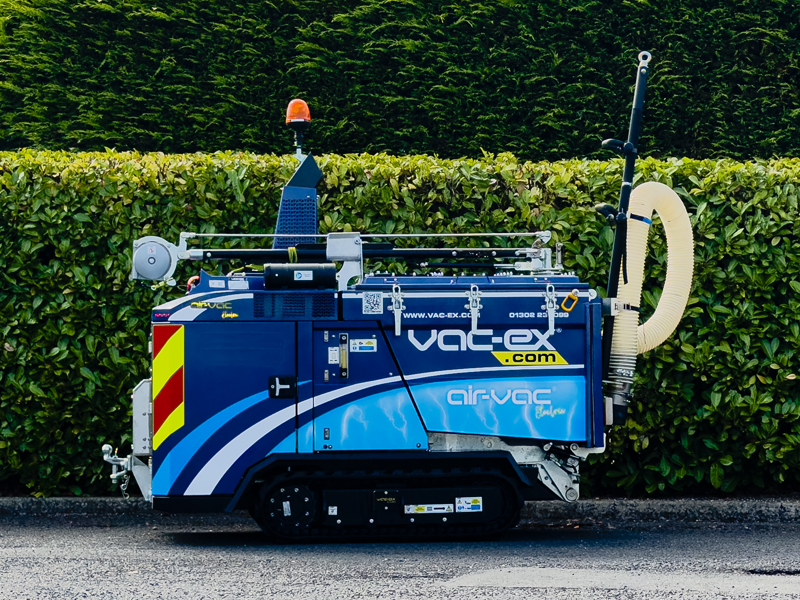

Narrow Width

With its 1000 mm width, the AIR-VAC electric is perfectly suited to footpaths and narrow access areas where roadside operation or traffic management isn’t feasible.

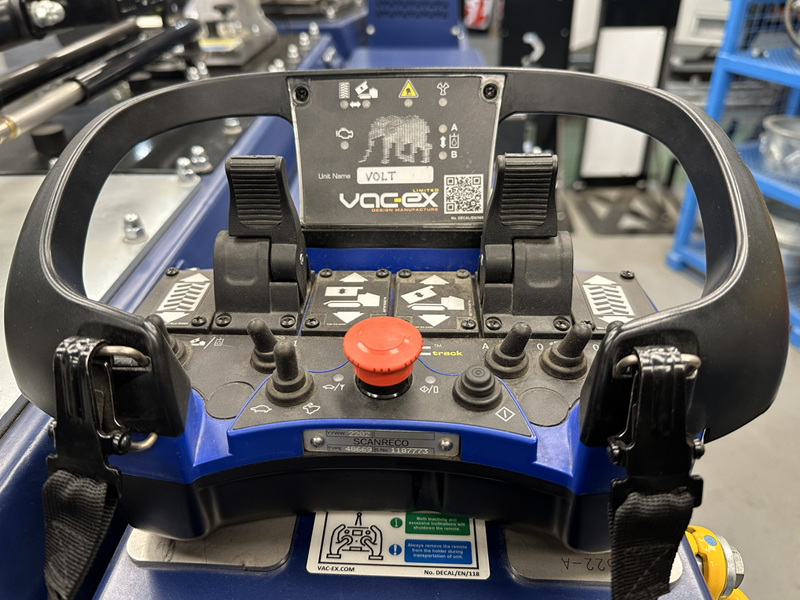

Remote Control

A fully proportional remote-control enhances safety, allowing operation from safer positions with improved visibility and reduced vibration.

Lightweight but Robust

Weighing 1750 kg, the AIR-VAC electric offers excellent weight distribution for off-road use, tipping, and loading operations.

Easy to Mobilise

With a gross tare weight of 1750 kg, the AIR-VAC 4 is easy to transport to site using existing fleet vehicles.

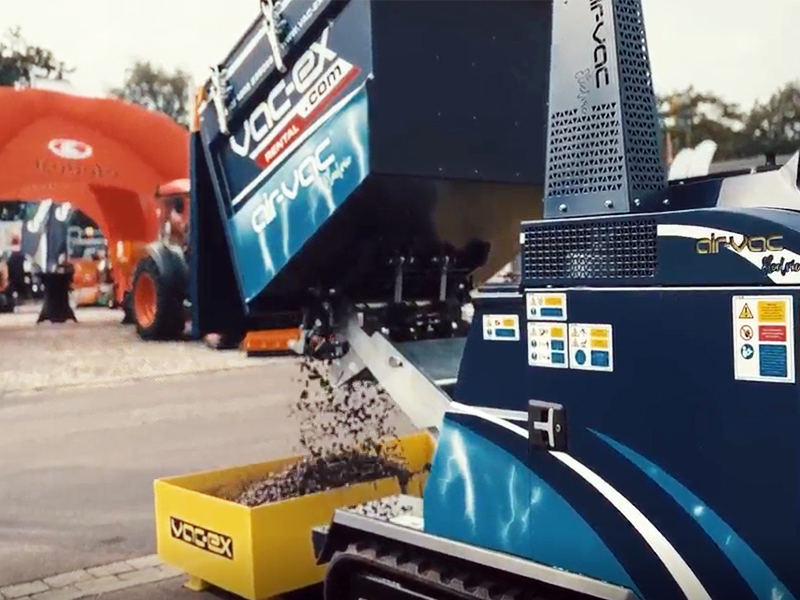

Debris Skip & Tipping

A large, hinged debris door and inclined skip with a PE-lined base enable quick and easy clean-out for operators.

High Efficiency Filtration

The efficient filtration system maintains full power for repeated use between loads, and filters easily removed for power washing

Hydraulic Power

A dual-circuit hydraulic system enables the use of multiple tools, including breakers, cut-off saws, corers, and tampers, among others.

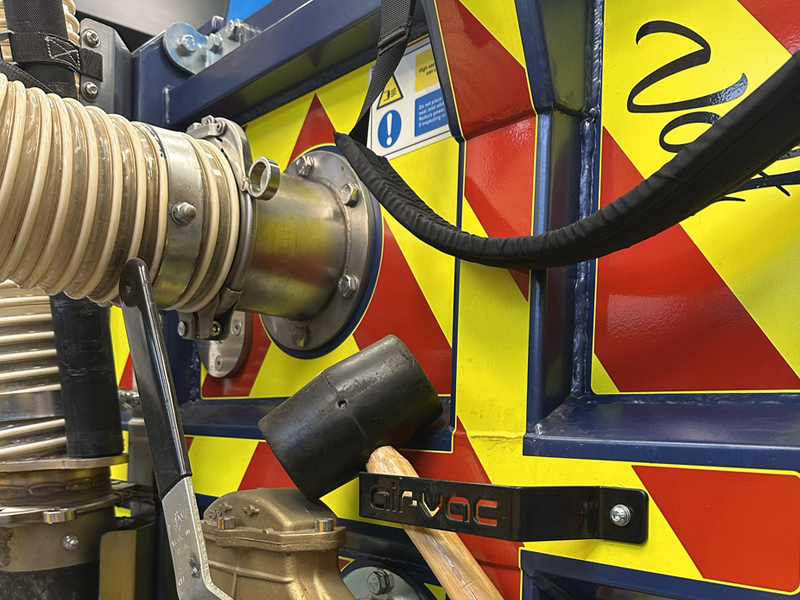

Hose Inlet

Using a 125mm/ 5” inlet, the AIR-VAC has industry leading power to size ratio.

E-Stop

Located centrally on the AIR-VAC electric allows for fast, easy reach.

Lighting

Amber warning, working and tracking warning LED lights are used to warn and inform operatives and others of the AIR-VAC's presence.

Non-Conductive Excavation

The excavation tooling is constructed from a mix of aluminium and PE plastic. This provides a degree of protection from electric shock hazards.

Zero HAVS

All the VAC-EX Tooling is vibration tested with HAVI®. Please contact us for more information.

Rail Ballast

Designed to handle rail ballast with ease.

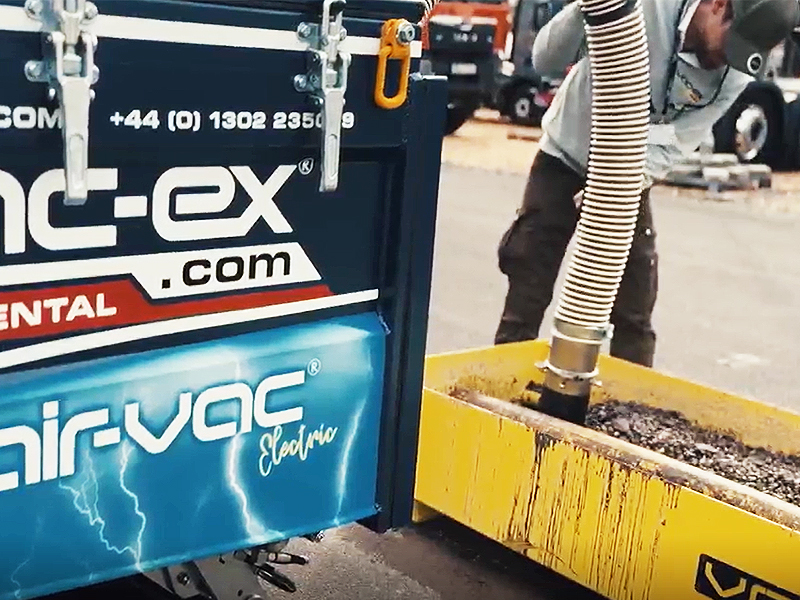

Dry Excavation

The AIR-VAC electric has primarily been designed to excavate dry, although can be used for hydro-excavation, slurries and water.

Clays

The AIR-VAC can handle clayey ground but tends to be slower. Contact us to discuss how to get the best results.

Depths

Whilst most excavations are in the region of 1.5m, the AIR-VAC is quite capable of operating at 6m depth.

AIR-EX Lance

The industry leading tool for ground decompaction and clearance of spoil from underground assets. Powered from an external towed or vehicle mounted compressor.

Filter Blaster

Allows for safe operation and handling of compressed air whilst cleaning down the filters.

Trailer

Our modified Indespension trailer which features convenient tie down points, is a proven work tool when it comes to towing plant & equipment.

Fully Customisable

The AIR-VAC electric can be fully customised with your brand’s colours and assets for a personalised, professional look.

Share your AIR-VAC experience with us at [email protected]

Next Steps

Build your AIR-VAC Electric Product Sheet
