T-VAC 2 - trailer (2022

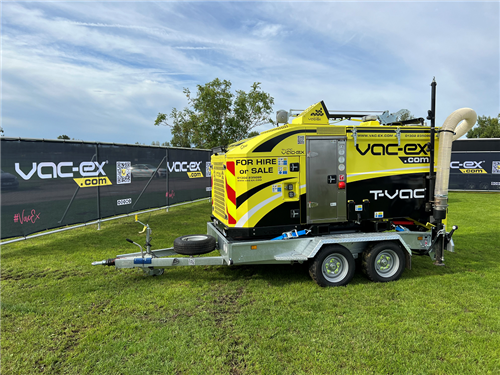

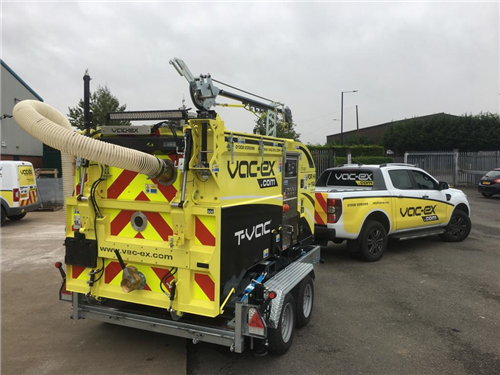

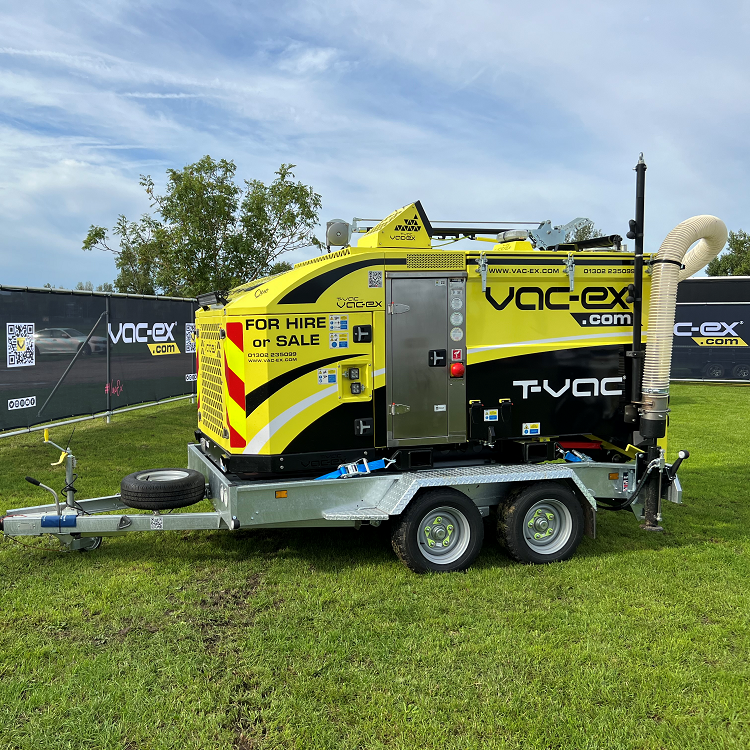

T-VAC trailer
`Vacuum excavator`

Patent granted GB2572193

With 1m³ tank capacity, this powerful and lightweight VAC-EX trailer unit can excavate safely wet or dry material.

Technical Specifications

Length (including trailer)	5140 mm (202 in)
Length (T-VAC 2)	3850 mm (151.5 in)
Width	2370 mm (93 in)
Height	2490 mm (98 in)
Height (skip at max. tip)**	3150 mm (124 in)
Weight*	2682 kg (5912 lbs)
Debris Skip Capacity	1.0 m³ (220 gal)
Hose Inlet Ø	150 mm (6 in)
Vacuum	Twin turbine
*Including optional TV2-ARM-K2
**Can vary depending on support leg extension and towing hitch height
Machine weight can vary depending on specification.
Under our policy of continuous improvement, we reserve the right to change specifications and design without prior notice. The illustrations do not necessarily show the standard version of the machine.

OUR MACHINES ARE USED WITHIN

Idea for the 'T-VAC 2 trailer'

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Mauris ullamcorper nec est ac bibendum. Pellentesque pellentesque libero massa, et fringilla libero aliquam vel. Fusce orci.

Lightweight but Robust

At 2500 kg, the 'T-VAC 2 trailer' offers great weight distribution across the trailer chassis. The mix of mildsteel and aluminium keep the important equipment safe and body parts away.

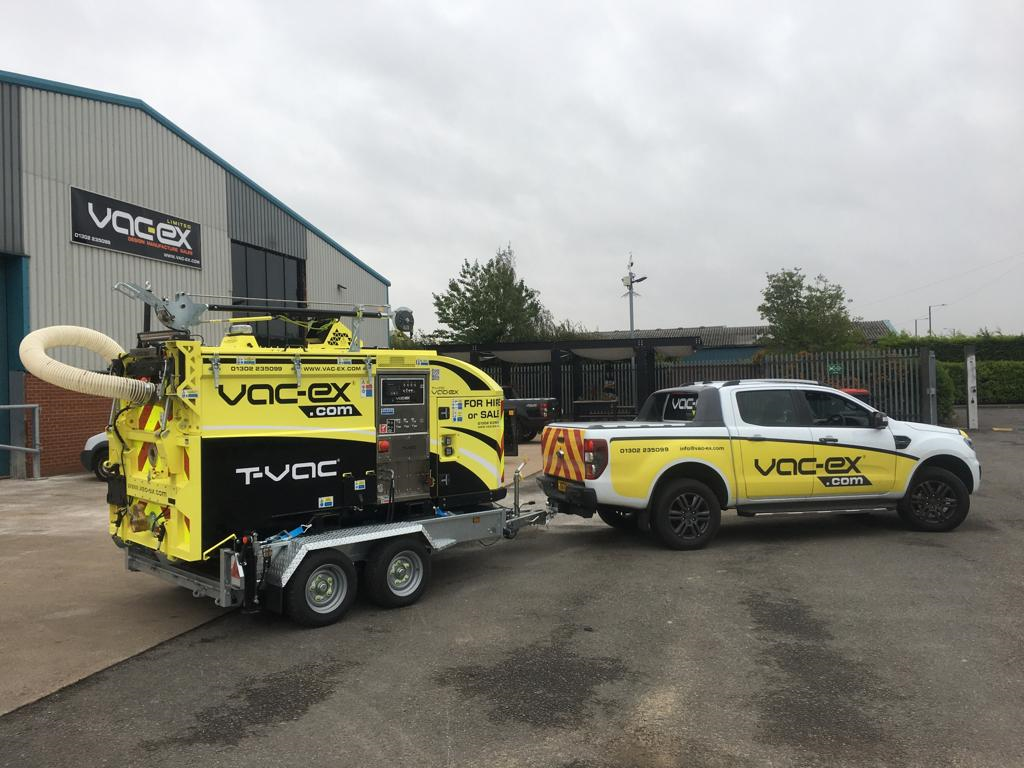

Easy to Mobilise

With a tare weight of 2500 kg, the 'T-VAC 2 trailer' unit can be transported by most commercial vans.

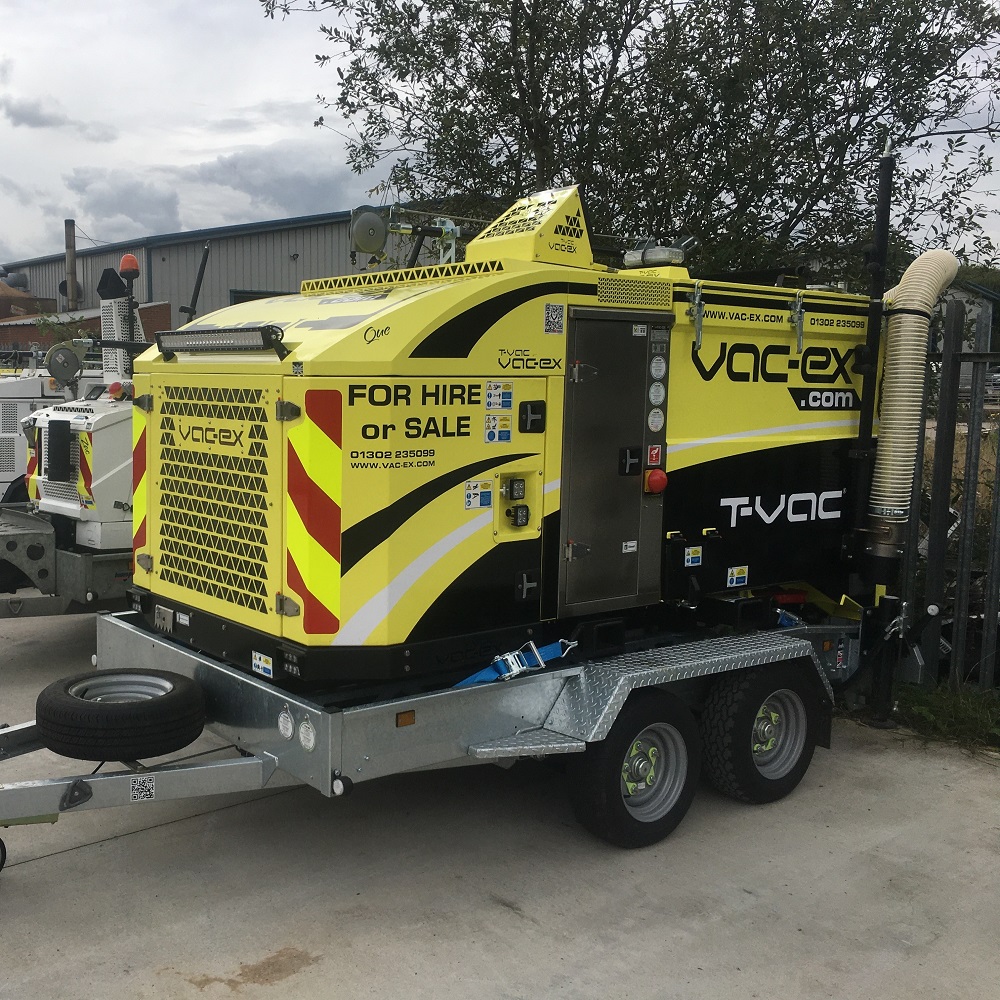

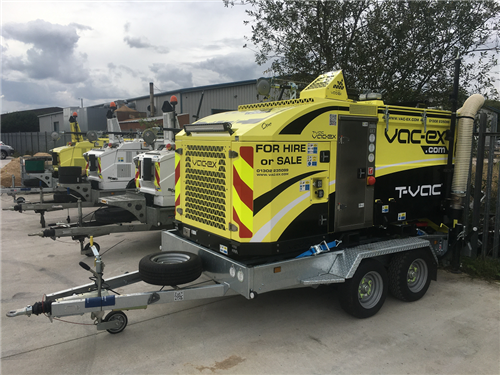

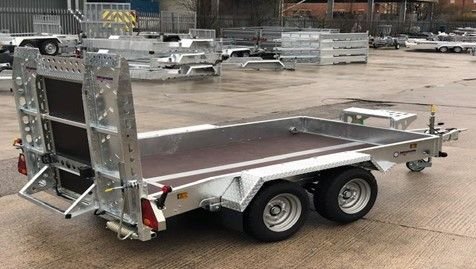

Trailer Chassis

It was important that the 'T-VAC 2 trailer' unit was partnered with a robust well constructed trailer. Indespension is one of the leading UK manufacturers of trailers and towing products across the globe.

10’ x 5‘ Challenger 50 Beavertail Trailer (3500kgs)

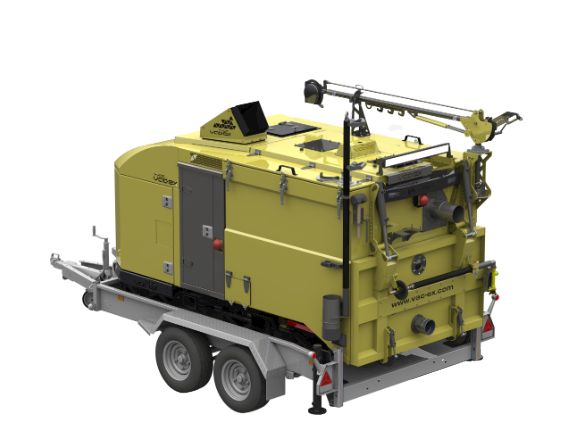

Exterior Design

The T-VAC’s design allows easy corporate colours and decals to be presented.

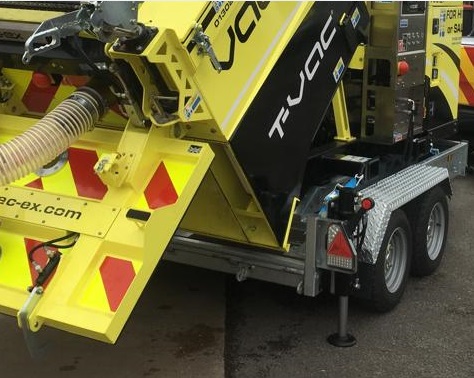

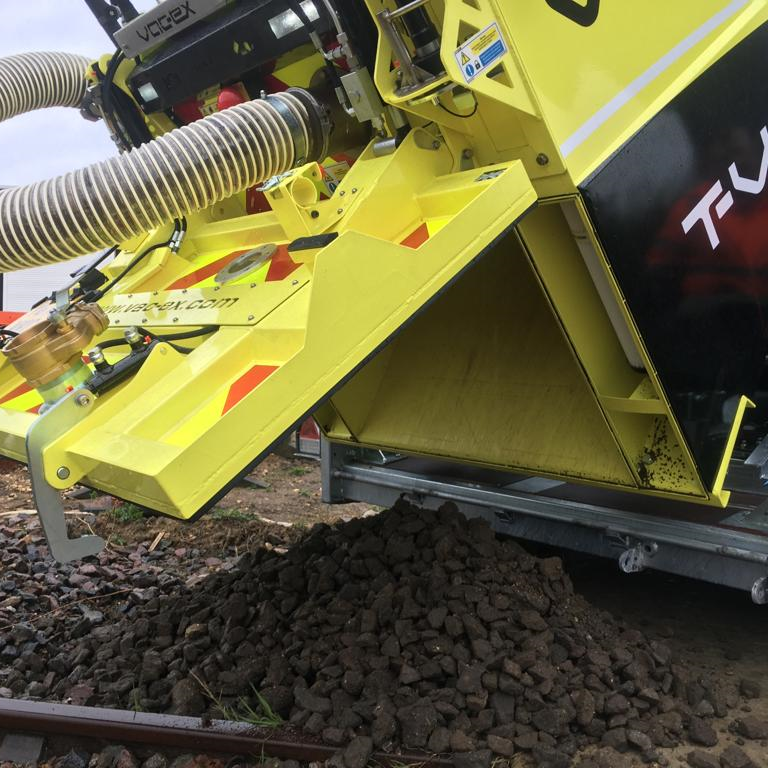

Debris Skip & Tipping

Features a rear tipping, top hinged debris door and inclinded floor for ease of emptying.

Cleaning the Filters

Couldn’t be easier. The T-VAC 2 design allows quick, almost dust free clean-off. The filters can also be quickly removed for power washing.

Top hatch Inspection

Allows quick & easy access into the debris tank for inspection & clean out.

The original 'T-VAC 1 trailer'

The T-VAC was originally designed for Scottish Water back in 2016 as a solution to an ongoing issue, they needed a Vacuum Excavation unit that suited their needs. The initial decision was made to allow the same T-VAC to be either trailer or static mounted.

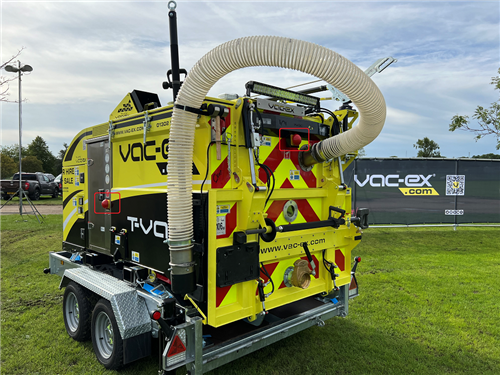

E-Stops

Three E-Stops, conveniently located each side and rear of the T-VAC 2 for quick and easy reach.

Debris Skip Prop

Integral skip prop is present to provide a mechanical solution for keeping the debris skip fully open – keeping you safe and makes servicing or inspecting much easier.

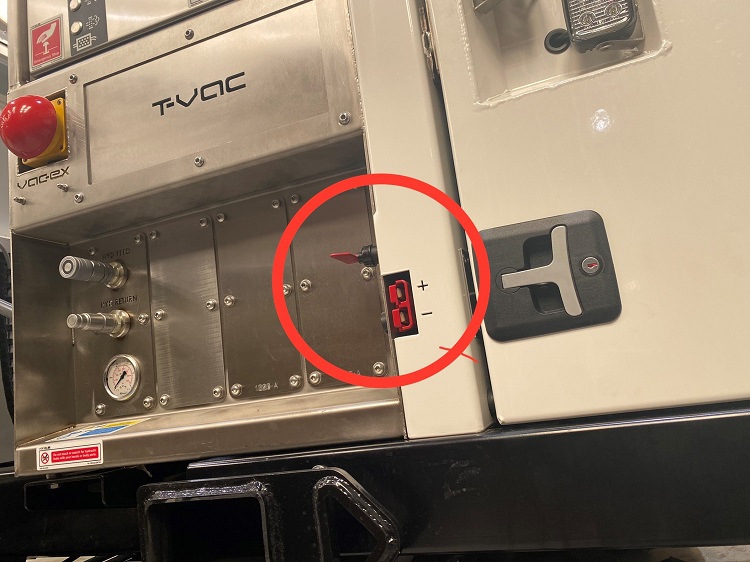

Battery Isolator & Connector

Isolator provides a simple and effective way to disconnect a battery from equipment for safety, security or servicing.
The connector allows for safe charging or jump starting the battery.

Efficiency

Whilst power is an important requirement, we feel it's important to use it efficiently and economically that is why we chose to partner it with a Kubota Tier 4 / EU Stage V engine. Typical diesel consumption (during full vacuum) is 11 litres / hour.

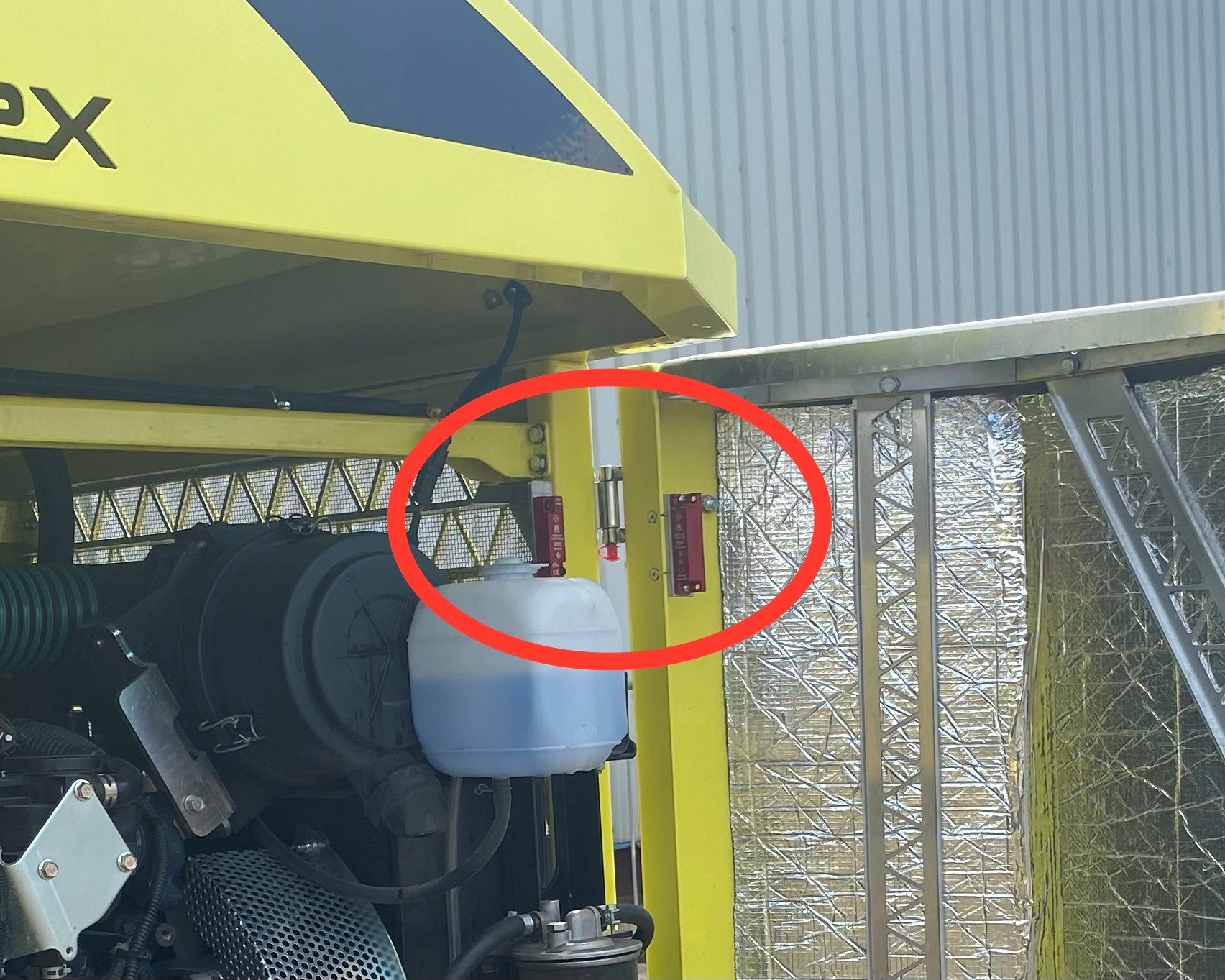

Engine Door Sensors

These protect the operator (and others) by immediately shutting down the machine as soon as the opening of the engine doors is detected. These offer a certified safety solution for guard monitoring.

Rear Hydraulic Stabilisers

Two rear mounted hydrauilc stabilisers ensure the trailers suspension and vehicle tow bar are not put under undue stress during loading and tipping.

Lighting

Fully adjustable rear working LED spot lights assist during those dark months or night working.
Roof mounted amber LED is highly visible from all angles.

Non-Conductive Excavation

The excavation tooling is constructed from a mix of aluminium and PE plastic. This provides a degree of protection from electric shock hazards.

Zero HAVS

All the VAC-EX Ltd tooling is vibration tested with HAVI®. Please contact us for more information.

Hose inlet Size

Utilising a 150mm (6") inlet the T-VAC 2 has industry leading power to size ratio. This inlet can also be reduced down to 125mm (5"), 100mm (4") and 75mm (3") if required.

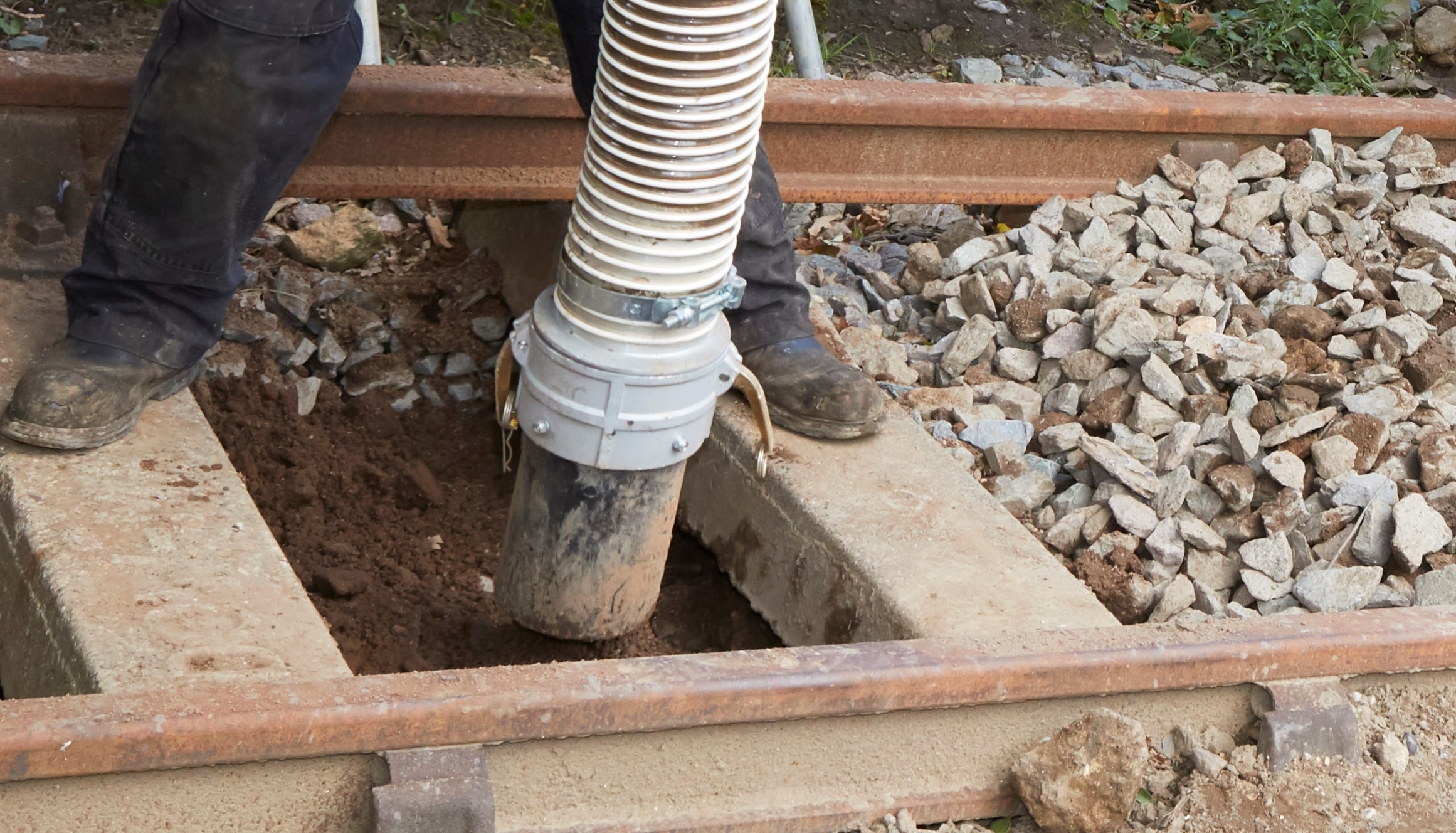

Rail Ballast

If there was ever a perfect material for the T-VAC 2, rail ballast comes very close. Handles rail ballast with ease

Dry Excavation

Handles gravels, dust, mud, ballast with ease whilst filtering the air before exhausting to atmosphere.

Hydro-Excavation

Handles slurries, water and mud with ease. A 100mm (4") gate valve allows for a controlled release. We recommend our top-inlet & porthole system for dedicated more long term usage.

Clays

The T-VAC 2 can handle clayey ground. There are lots of variables which can make it difficult. Contact us to discuss your options.

Depths

Whilst most excavations are in the region of 1.5m, on occasions, the T-VAC 2 hose has been operated at 8m deep.

Power

Whilst power is an important requirement, we feel it's important to use it efficiently and economically, that is why we chose to partner it with a Kubota Tier 4 and EU Stage V engine.

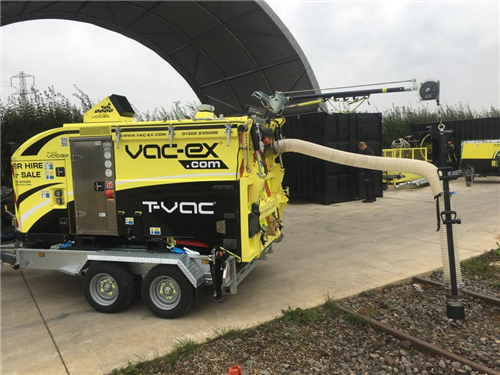

Manual Support Arm

With a 180° working radius and adjustable working height, this is an excellent option to assist with the manual handling of the 150mm (6”) Vac Hose.

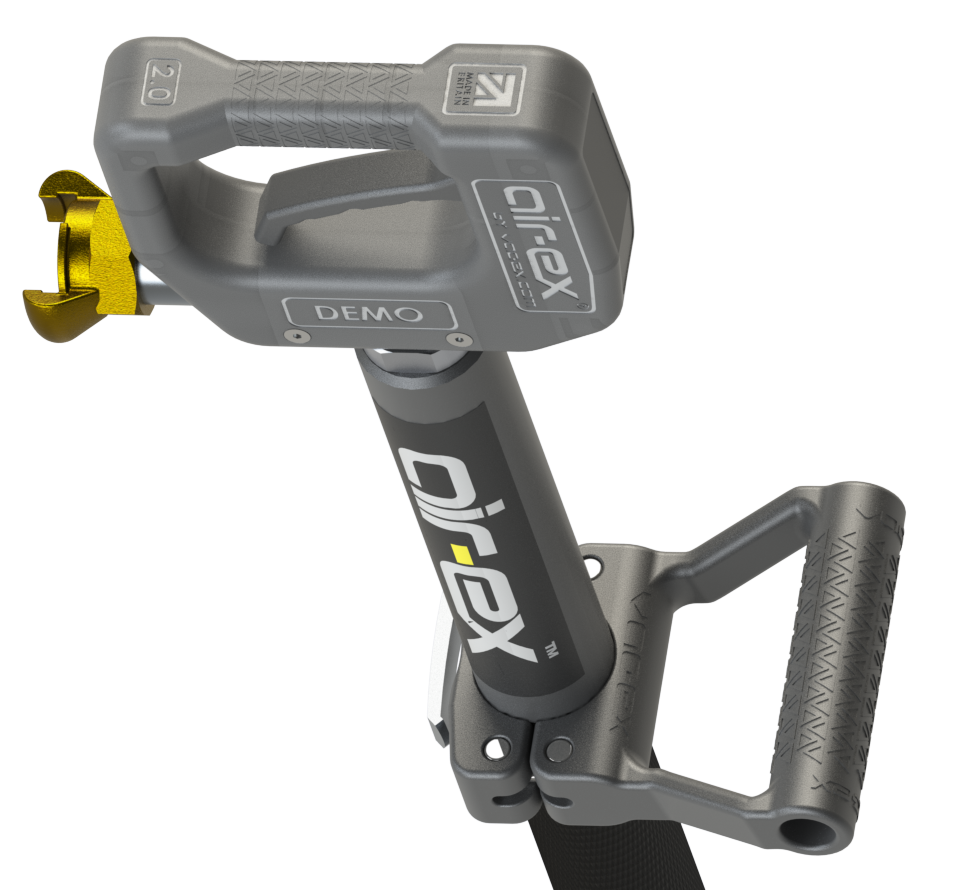

AIR-EX Lance

The AIR-EX® is the industry leading tool for ground decompaction and clearance of spoil from underground assets. It enables safe, effective, stress free excavation around buried fibre optics, gas, water or electric.
information on the AIR-EX

Dump-Ex

An option which both improves the off road capabilities and extends the range and functionality of the T-VAC.

Top inlet & Porthole

Utilised for extensive or prolonged Hydro-Excavating or connecting alternative debris skips.

Filter Blaster

Allows for safe operation and handling of compressed air whilst cleaning down the filters.
