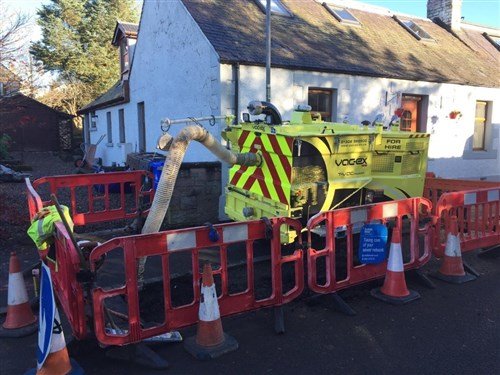

T-VAC 1 - Track (2016

'T-VAC 1' units are powerful, compact and capable of excavating most types of ground (wet or dry) by utilising optional high pressure water and/or compressed air.

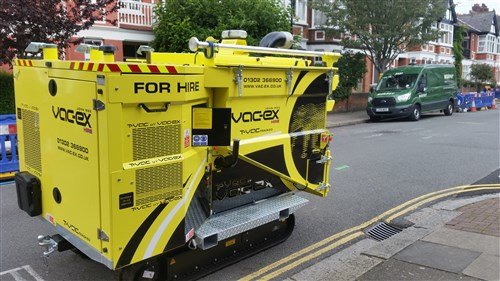

Its small footprint allows access into those tight streets and parked cars.

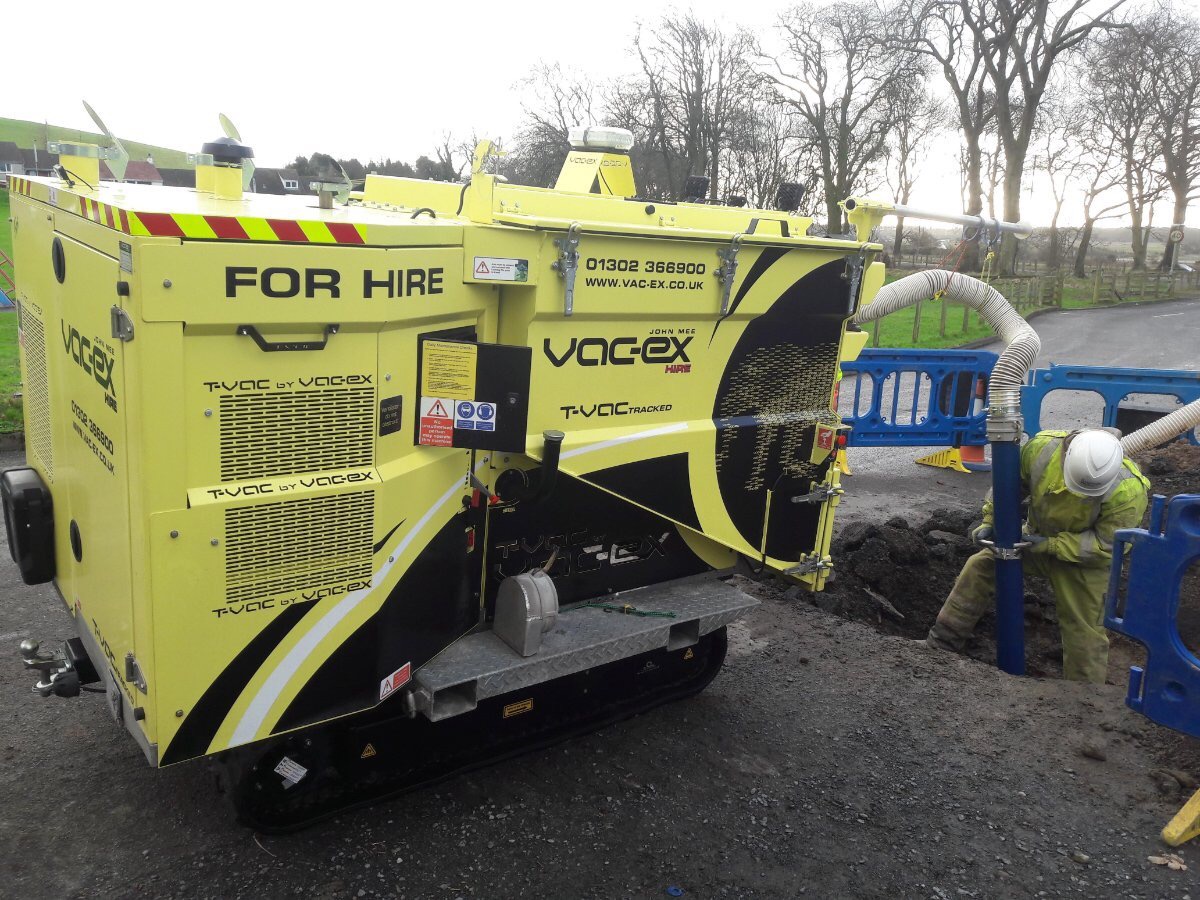

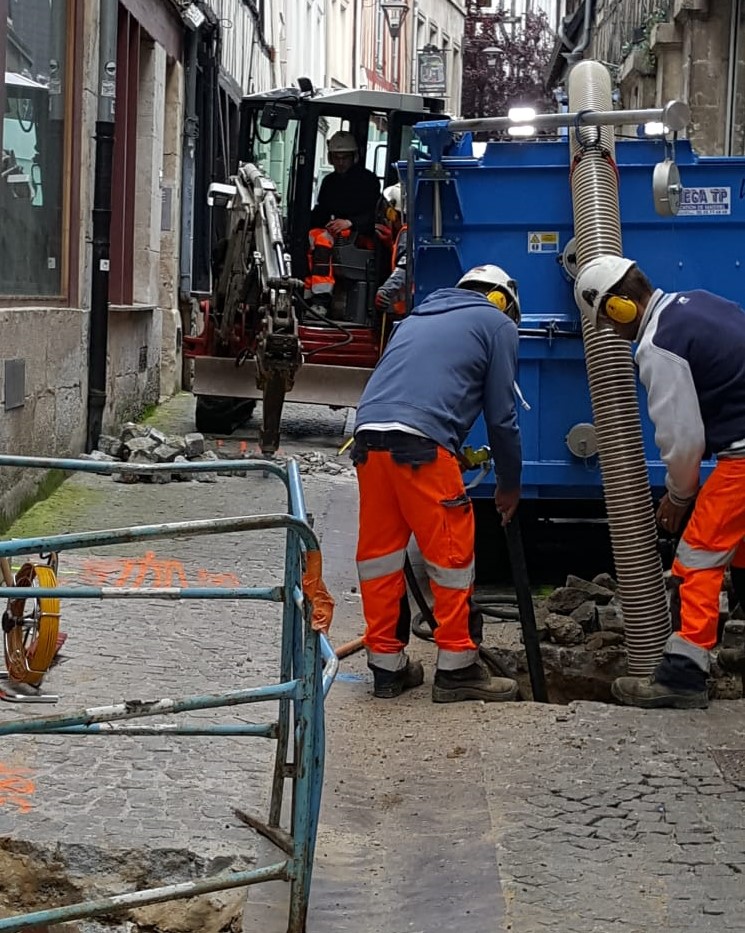

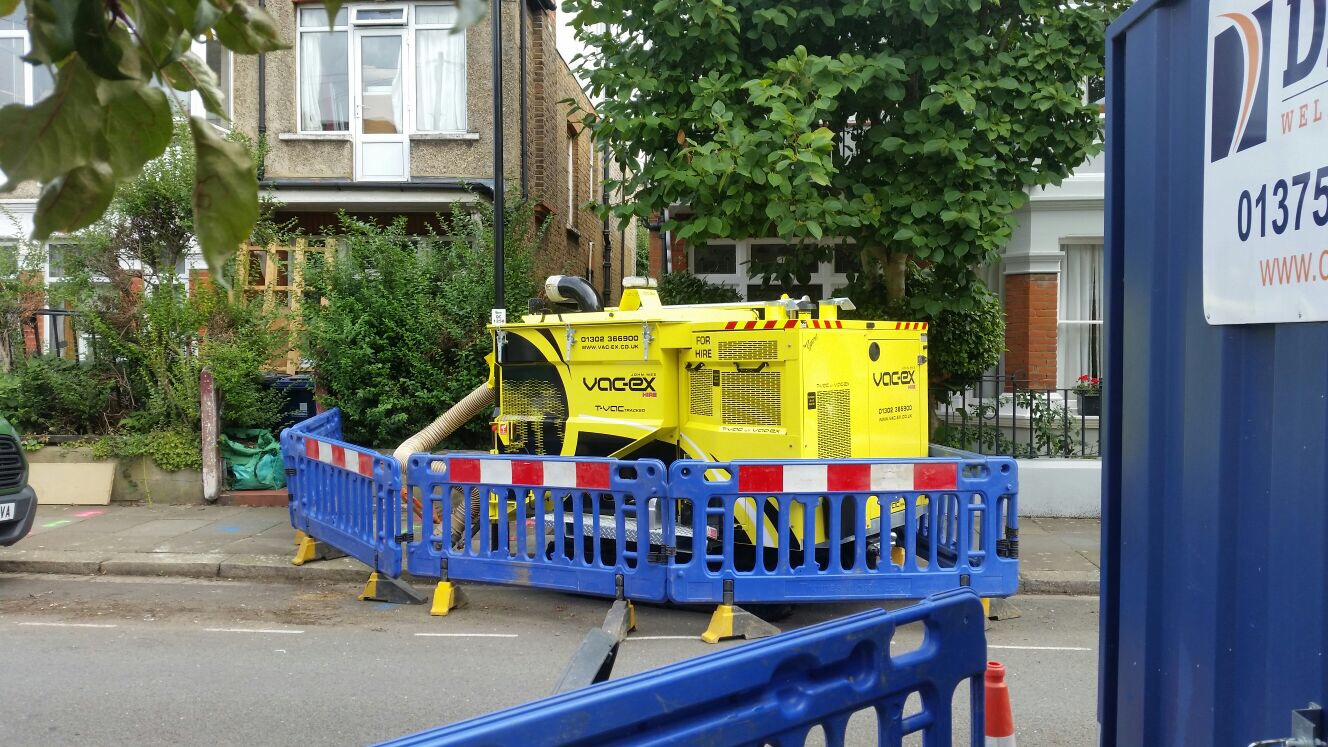

Excavating in the Footpath

Off-Road

Clay & Slurry

Technical Specifications

	S Skip	XL Skip

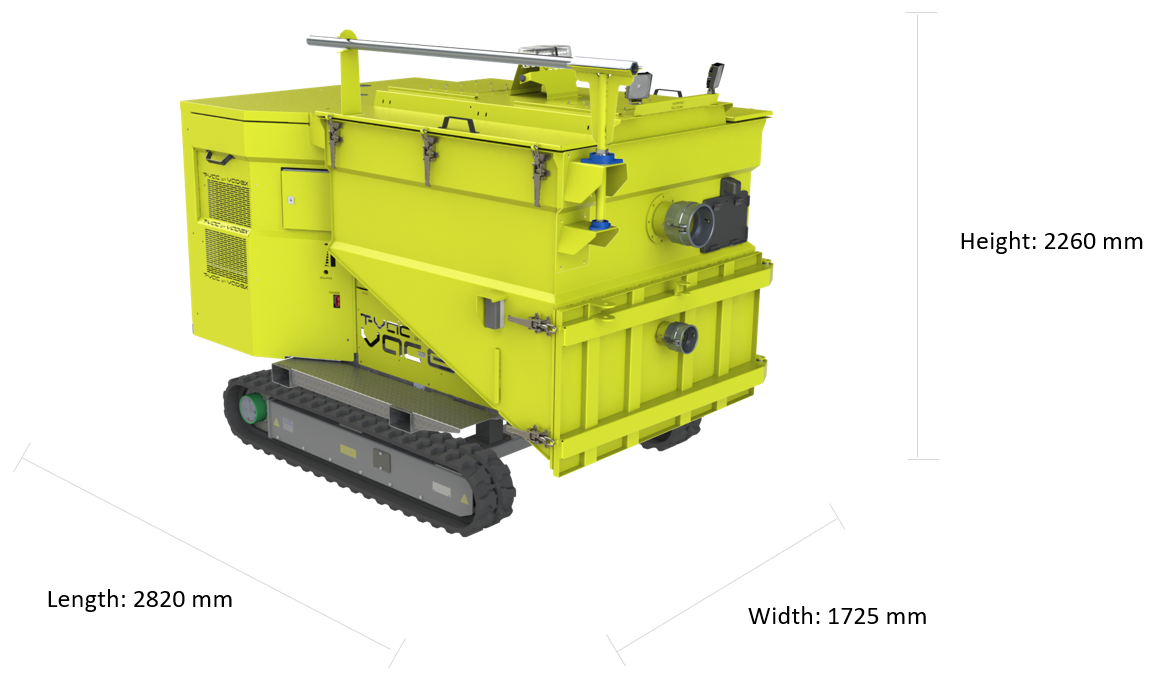

Length	2820 mm	2820 mm
Width	1725 mm	1725 mm
Height – Min Tipping	2260 mm	2260 mm
Height- Max Tipping	2260 mm	2260 mm
Weight (T-VAC tare) Weight (T-VAC & Trailer tare)	2250 kg 2750 kg	2300 kg 2800 kg
Skip Capacity	0.6 m³	1.0 m³
Hose Inlet	150 mm/6”	150 mm/6”
Compressor	Optional	Optional
HP water	Optional	Optional

Idea for the T-VAC track

Following the success of the T-VAC trailer unit, we could see benefits to making the the T-VAC even more mobile.

Lightweight but Robust

With a tare weight of 2300 kg, the
T-VAC track is still one of the lightest Vacuum Excavation units in its class. The mix of steel and aluminium laser cut panels keep the important equipment safe and body parts away.

Easy to Mobilise

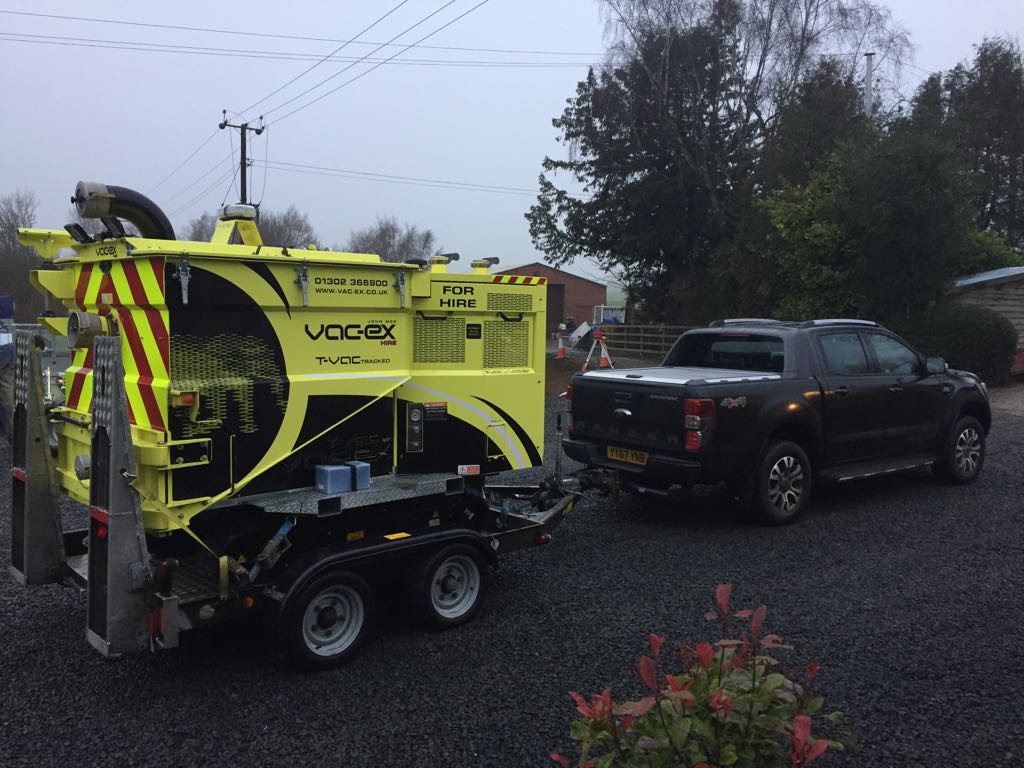

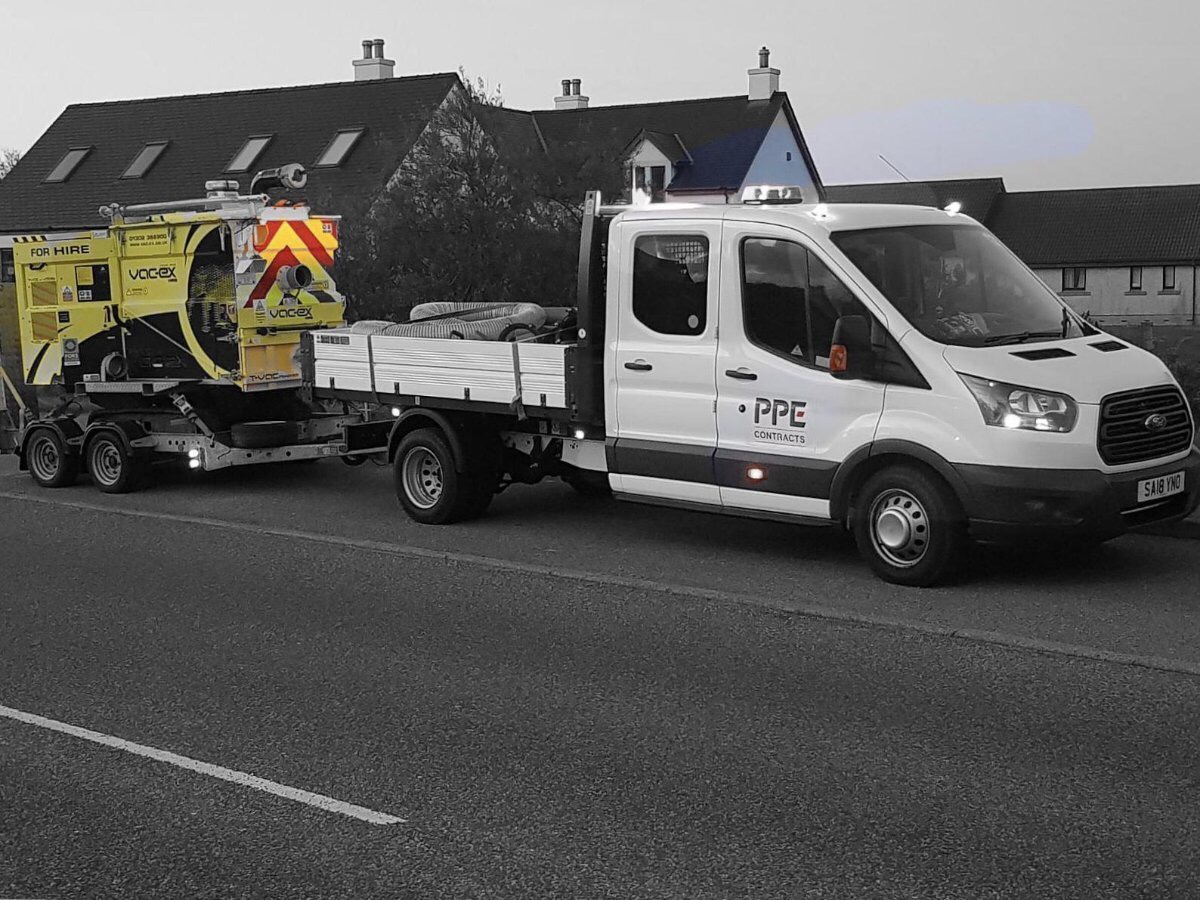

At 2300 kg the T-VAC Track is still light enough to be comfortably towed utilising most vans and 4x4 vehicles.

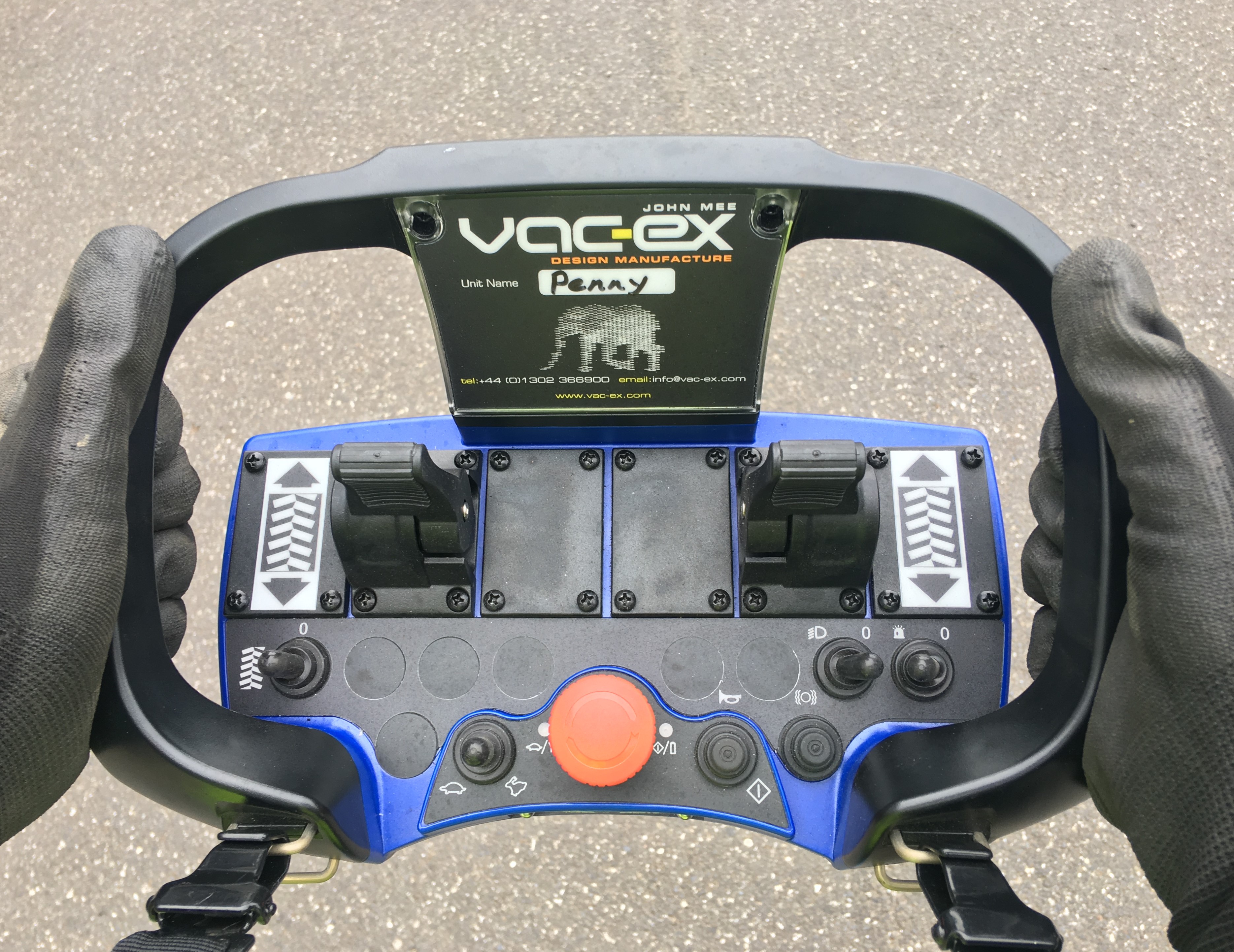

Remote Control

Fully proportional remote control system offering better safety and productivity. Enables the operation of the T-VAC from safer grounds with better vantage points, and at reduced levels of vibration.
http://scanreco.com/en/neverstop-technology/

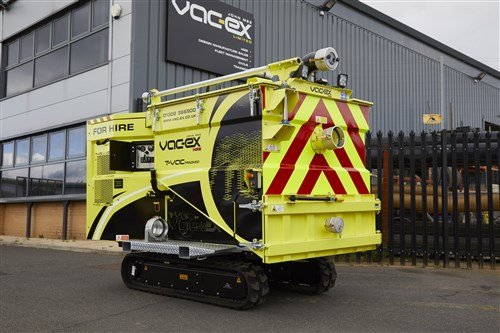

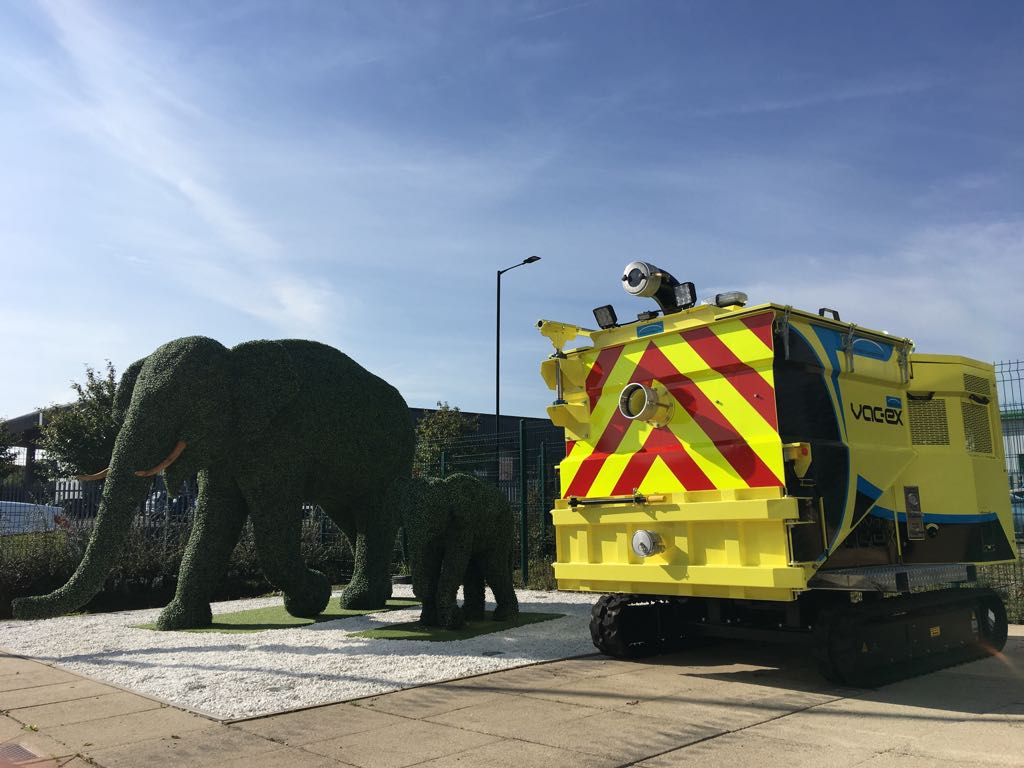

Exterior Design

Utilising heavy duty, European made tracked undercarriages, the T-VAC should access many areas previously off limits.

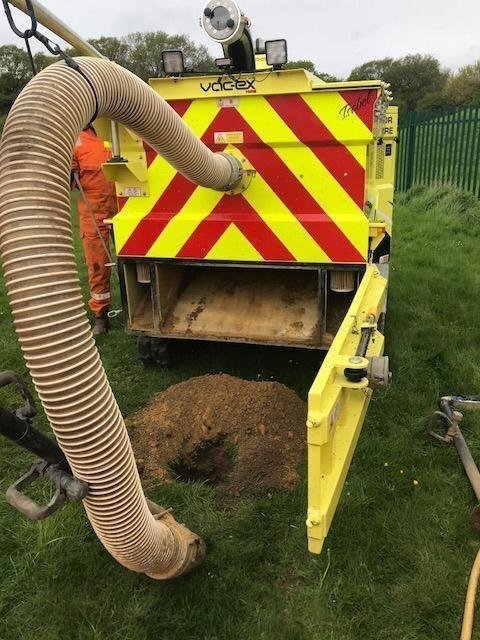

Debris Skip & Tipping

A large hinged debris door and inclined skip with PE lined base.

Cleaning the Filters

Couldn’t be easier. The T-VAC design allows quick, almost dust free clean-off. The filters can also be quickly removed for power washing.

E-Stops

Located both sides of the unit for quick and easy reach. Umbilical E-Stop is also an option.

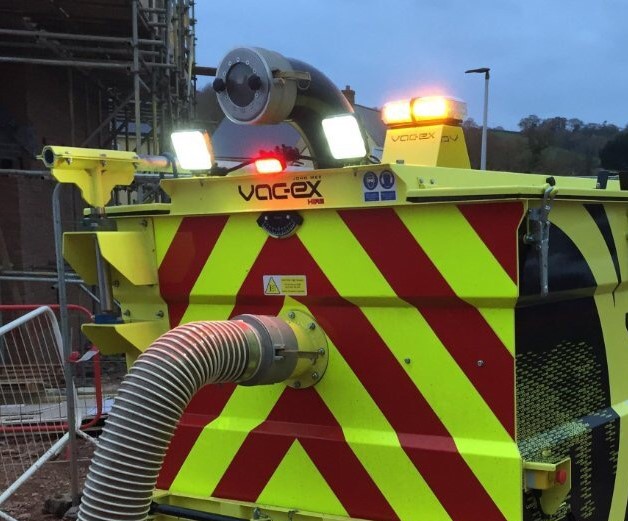

Lighting

Fully adjustable rear working LED spot lights assist during those dark months or night working.

Roof mounted Amber LED is highly visible from all angles.
Central red tracking warning LED.

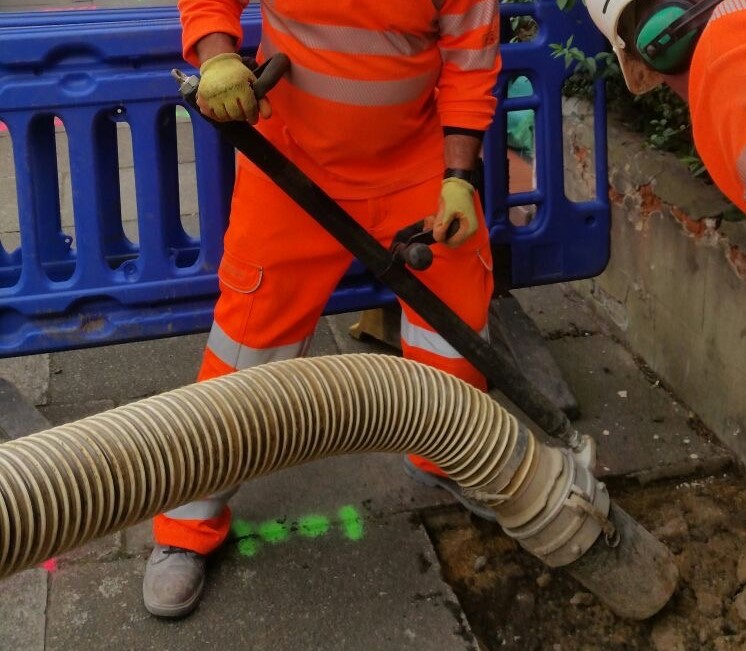

Non-Conductive Excavation

The excavation tooling is constructed from a mix of aluminium and PE plastic. This provides a degree of protection from electric shock hazards.

Zero HAVS

All the VAC-EX Ltd tooling is vibration tested with HAVI®. Contact us for more information.

Hose inlet Size

Utilising a 150mm/ 6” inlet the T-VAC has industry leading power to size ratio.

Rail Ballast

Handles Rail Ballast with ease.

Dry Excavation

Handles gravels, dust, mud, ballast with ease.

Hydro-Excavation

Handles slurries & water with ease. We recommend our top-inlet & porthole system for dedicated more long term usage.

Clays

The T-VAC can handle clayey ground there are lots of variables which can make but best to contact us to discuss.

Depths

Whilst most excavations are in the region of 1.5m, on occasions, the T-VAC hose has been operated at 8m deep.

Efficiency

Whilst power is an important requirement, we feel it's important to use it efficiently. Average users do not exceed 30 litres / day.

Support Arm

An option to assist with the manual handling of the Vac Hose.

HP Water / Hydro-Excavation

An option to Vacuum Excavate using HP water or compressed air offers the operator better versatility.

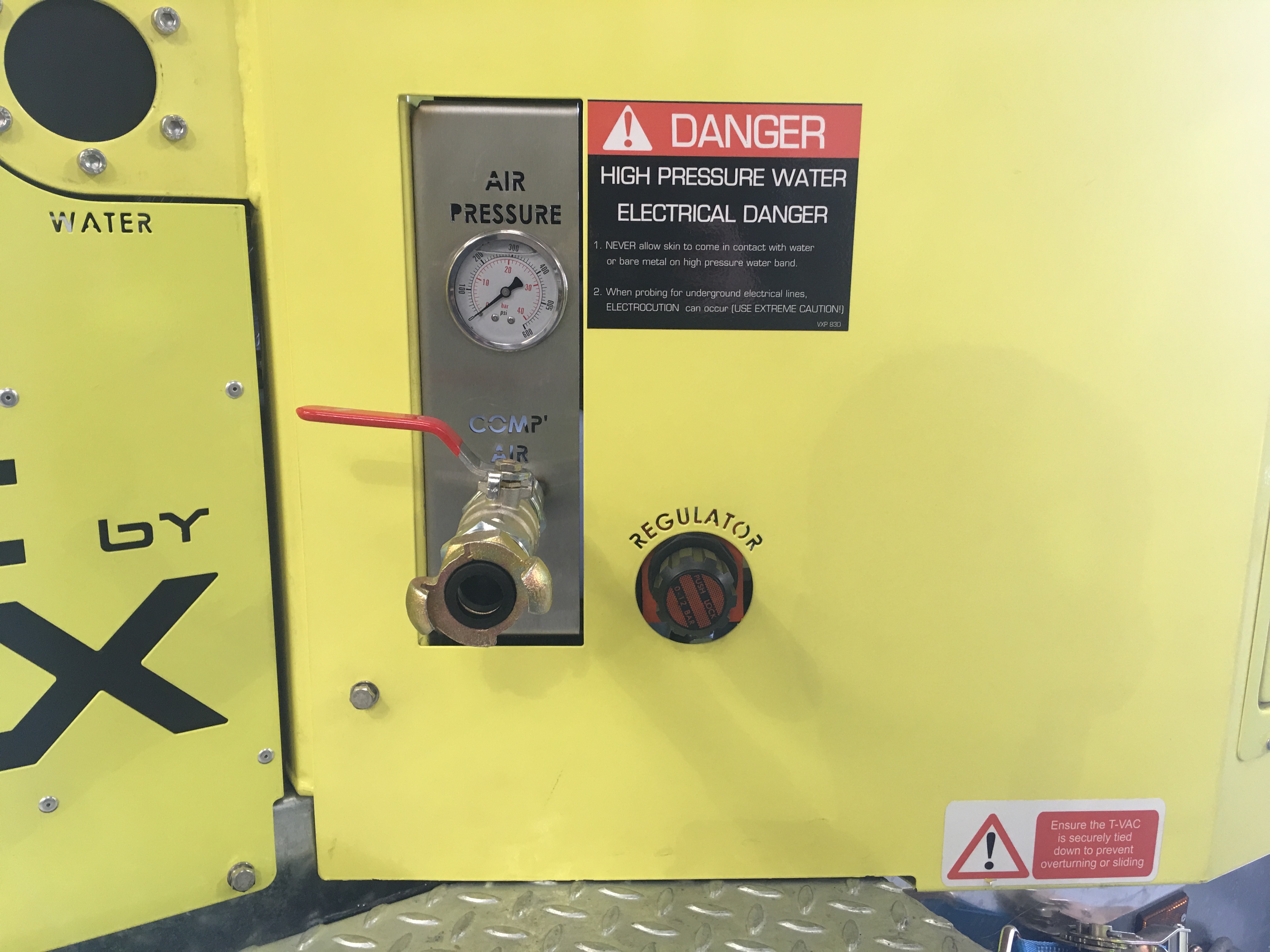

Compressed AIR

10 Bar on-board compressed air system is one of the latest options to be added to the T-VAC Track unit. This will be available in 2019 for all future units and a retro fit option to previously manufactured units.

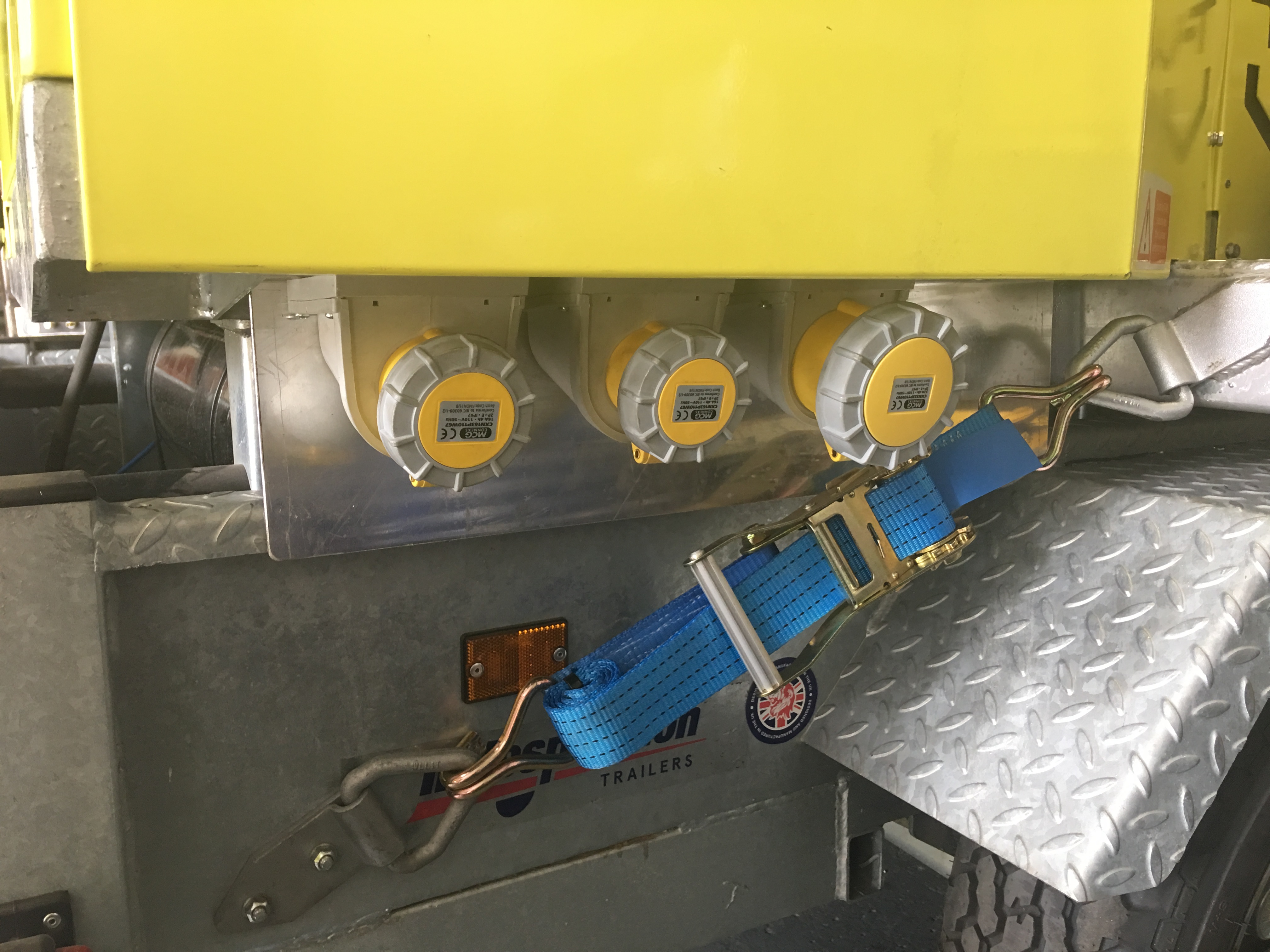

6 KV Electric

An option which allows additional functionality such as additional work lighting, pipe fusion, tooling etc.

AIR-EX Lance

The AIR-EX® is the industry leading tool for ground decompaction and clearance of spoil from underground assets. It enables safe, effective, stress free excavation around buried fibre optics, gas, water or electric.

Dump-Ex - Extending the spoil capacity

An option which both improves the off road capabilities and extends the range and functionality of the T-VAC.

Top inlet & Porthole

Utilised for extensive or prolonged Hydro-Excavating or connecting alternative debris skips.

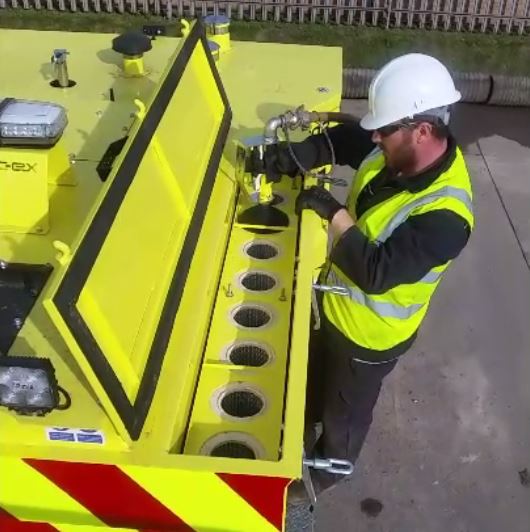

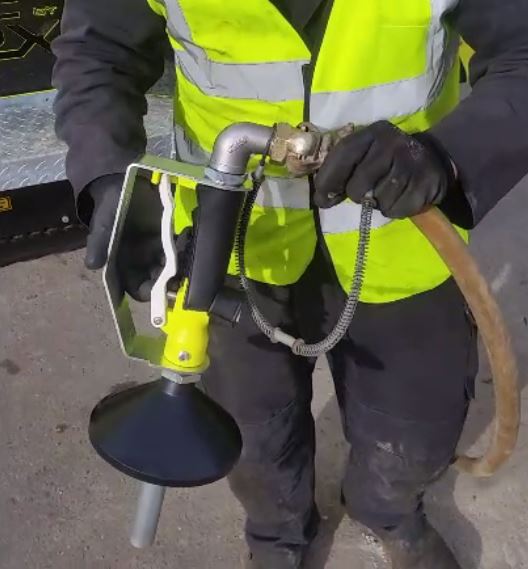

Filter Blaster

Allows for safe operation and handling of compressed air whilst cleaning the filters.

Top Hatch

Allows quick & easy access into the debris tank for inspection & clean out.
